Complete Workflow: From Data to Results

From Raw Data to Publication-Ready Results

This guide walks through a complete analysis workflow using taxdiv — from preparing your data to interpreting and exporting results. By the end, you will have computed all 14 diversity indices, generated diagnostic plots, and saved results to a file.

library(taxdiv)

Step 1: Prepare Your Data

taxdiv needs two inputs:

Community data — a named numeric vector (single site) or a data frame with a Site column (multiple sites)
Taxonomic tree — a data frame with Species and at least one higher-level column (Genus, Family, Order, etc.)

Single community (named vector)

community <- c(
  Quercus_coccifera    = 9,
  Quercus_infectoria   = 7,
  Pinus_brutia         = 9,
  Pinus_nigra          = 5,
  Juniperus_excelsa    = 4,
  Juniperus_oxycedrus  = 3,
  Arbutus_andrachne    = 6,
  Styrax_officinalis   = 2,
  Cercis_siliquastrum  = 1,
  Olea_europaea        = 5
)

Taxonomic tree

Use build_tax_tree() to create a properly structured tree. Column order defines the hierarchy — species-level first, then progressively higher ranks:

tax_tree <- build_tax_tree(
  species = names(community),
  Genus   = c("Quercus", "Quercus", "Pinus", "Pinus",
              "Juniperus", "Juniperus", "Arbutus", "Styrax",
              "Cercis", "Olea"),
  Family  = c("Fagaceae", "Fagaceae", "Pinaceae", "Pinaceae",
              "Cupressaceae", "Cupressaceae", "Ericaceae", "Styracaceae",
              "Fabaceae", "Oleaceae"),
  Order   = c("Fagales", "Fagales", "Pinales", "Pinales",
              "Pinales", "Pinales", "Ericales", "Ericales",
              "Fabales", "Lamiales")
)

tax_tree
#>                Species     Genus       Family    Order
#> 1    Quercus_coccifera   Quercus     Fagaceae  Fagales
#> 2   Quercus_infectoria   Quercus     Fagaceae  Fagales
#> 3         Pinus_brutia     Pinus     Pinaceae  Pinales
#> 4          Pinus_nigra     Pinus     Pinaceae  Pinales
#> 5    Juniperus_excelsa Juniperus Cupressaceae  Pinales
#> 6  Juniperus_oxycedrus Juniperus Cupressaceae  Pinales
#> 7    Arbutus_andrachne   Arbutus    Ericaceae Ericales
#> 8   Styrax_officinalis    Styrax  Styracaceae Ericales
#> 9  Cercis_siliquastrum    Cercis     Fabaceae  Fabales
#> 10       Olea_europaea      Olea     Oleaceae Lamiales

Multiple sites (data frame)

For multi-site analysis, your data should look like this:

multi_data <- data.frame(
  Site = rep(c("Forest_A", "Forest_B"), each = 5),
  Species = c("Quercus_coccifera", "Pinus_brutia", "Juniperus_excelsa",
              "Arbutus_andrachne", "Olea_europaea",
              "Quercus_coccifera", "Quercus_infectoria", "Pinus_brutia",
              "Pinus_nigra", "Cercis_siliquastrum"),
  Abundance = c(7, 8, 3, 5, 4,
                9, 6, 5, 4, 2),
  Genus = c("Quercus", "Pinus", "Juniperus", "Arbutus", "Olea",
            "Quercus", "Quercus", "Pinus", "Pinus", "Cercis"),
  Family = c("Fagaceae", "Pinaceae", "Cupressaceae", "Ericaceae", "Oleaceae",
             "Fagaceae", "Fagaceae", "Pinaceae", "Pinaceae", "Fabaceae"),
  Order = c("Fagales", "Pinales", "Pinales", "Ericales", "Lamiales",
            "Fagales", "Fagales", "Pinales", "Pinales", "Fabales")
)

head(multi_data)
#>       Site           Species Abundance     Genus       Family    Order
#> 1 Forest_A Quercus_coccifera         7   Quercus     Fagaceae  Fagales
#> 2 Forest_A      Pinus_brutia         8     Pinus     Pinaceae  Pinales
#> 3 Forest_A Juniperus_excelsa         3 Juniperus Cupressaceae  Pinales
#> 4 Forest_A Arbutus_andrachne         5   Arbutus    Ericaceae Ericales
#> 5 Forest_A     Olea_europaea         4      Olea     Oleaceae Lamiales
#> 6 Forest_B Quercus_coccifera         9   Quercus     Fagaceae  Fagales

Step 2: Compute All Indices at Once

Single community — `compare_indices()`

results <- compare_indices(community, tax_tree)
results
#> taxdiv -- Index Comparison
#>   Communities: 1
#>   Indices: Shannon, Simpson, Delta, Delta_star, AvTD, VarTD, uTO, TO, uTO_plus, TO_plus, uTO_max, TO_max, uTO_plus_max, TO_plus_max
#>
#>  Community N_Species  Shannon  Simpson    Delta Delta_star     AvTD    VarTD
#>  Community        10 2.162342 0.874279 2.487059   2.788918 2.866667 0.248889
#>       uTO       TO uTO_plus  TO_plus  uTO_max   TO_max uTO_plus_max TO_plus_max
#>  7.761257 10.93931  8.55023 11.72828 7.761257 10.93931      8.55023    11.72828

This returns all 14 indices: Shannon, Simpson, Delta, Delta*, AvTD, VarTD, and the 8 Ozkan pTO indices (uTO, TO, uTO+, TO+, and their max variants).

Multiple sites — `batch_analysis()`

batch_results <- batch_analysis(multi_data)
batch_results
#> taxdiv -- Batch Analysis
#>   Sites: 2
#>   Indices: 14
#>
#>      Site N_Species  Shannon  Simpson    Delta Delta_star AvTD VarTD      uTO
#>  Forest_A         5 1.549722 0.776406 2.418803   3.000000  3.0  0.00 6.669760
#>  Forest_B         5 1.507933 0.760355 1.916923   2.424125  2.6  0.64 5.737233
#>       TO uTO_plus   TO_plus  uTO_max  TO_max uTO_plus_max TO_plus_max
#>  9.84778 7.033776 10.211830 6.669760 9.84778     7.033776   10.211830
#>  8.91405 6.379634  9.557688 5.737233 8.91405     6.379634    9.557688

batch_analysis() automatically detects the Site, Species, and Abundance columns and computes all indices for each site. You can also use summary() to see statistics across sites:

summary(batch_results)
#> taxdiv -- Batch Analysis Summary
#>   Sites: 2
#>
#>         Index      Min     Mean       Max       SD
#>       Shannon 1.507933 1.528828  1.549722 0.029549
#>       Simpson 0.760355 0.768381  0.776406 0.011350
#>         Delta 1.916923 2.167863  2.418803 0.354883
#>    Delta_star 2.424125 2.712062  3.000000 0.407205
#>          AvTD 2.600000 2.800000  3.000000 0.282843
#>         VarTD 0.000000 0.320000  0.640000 0.452548
#>           uTO 5.737233 6.203496  6.669760 0.659396
#>            TO 8.914050 9.380915  9.847780 0.660247
#>      uTO_plus 6.379634 6.706705  7.033776 0.462548
#>       TO_plus 9.557688 9.884759 10.211830 0.462548
#>       uTO_max 5.737233 6.203496  6.669760 0.659396
#>        TO_max 8.914050 9.380915  9.847780 0.660247
#>  uTO_plus_max 6.379634 6.706705  7.033776 0.462548
#>   TO_plus_max 9.557688 9.884759 10.211830 0.462548

Step 3: Run the Full Ozkan Pipeline

For deeper analysis, the full three-run pipeline reveals species-level contributions to diversity:

full <- ozkan_pto_full(community, tax_tree, n_iter = 101, seed = 42)

cat("Run 1 (deterministic):\n")
#> Run 1 (deterministic):
cat("  uTO+ =", round(full$run1$uTO_plus, 4), "\n")
#>   uTO+ = 8.5502
cat("  TO+  =", round(full$run1$TO_plus, 4), "\n\n")
#>   TO+  = 11.7283

cat("Run 2 (stochastic maximum):\n")
#> Run 2 (stochastic maximum):
cat("  uTO+ =", round(full$run2$uTO_plus_max, 4), "\n")
#>   uTO+ = 8.5502
cat("  TO+  =", round(full$run2$TO_plus_max, 4), "\n\n")
#>   TO+  = 11.7283

cat("Run 3 (sensitivity maximum):\n")
#> Run 3 (sensitivity maximum):
cat("  uTO+ =", round(full$run3$uTO_plus_max, 4), "\n")
#>   uTO+ = 8.5502
cat("  TO+  =", round(full$run3$TO_plus_max, 4), "\n")
#>   TO+  = 11.7283

Step 4: Visualize Results

Compare communities side by side

degraded <- c(
  Quercus_coccifera   = 9,
  Pinus_brutia        = 8,
  Juniperus_oxycedrus = 5
)
tax_degraded <- tax_tree[tax_tree$Species %in% names(degraded), ]

communities <- list(
  "Intact Forest" = community,
  "Degraded"      = degraded
)

comp <- compare_indices(communities, tax_tree, plot = TRUE)
comp$plot

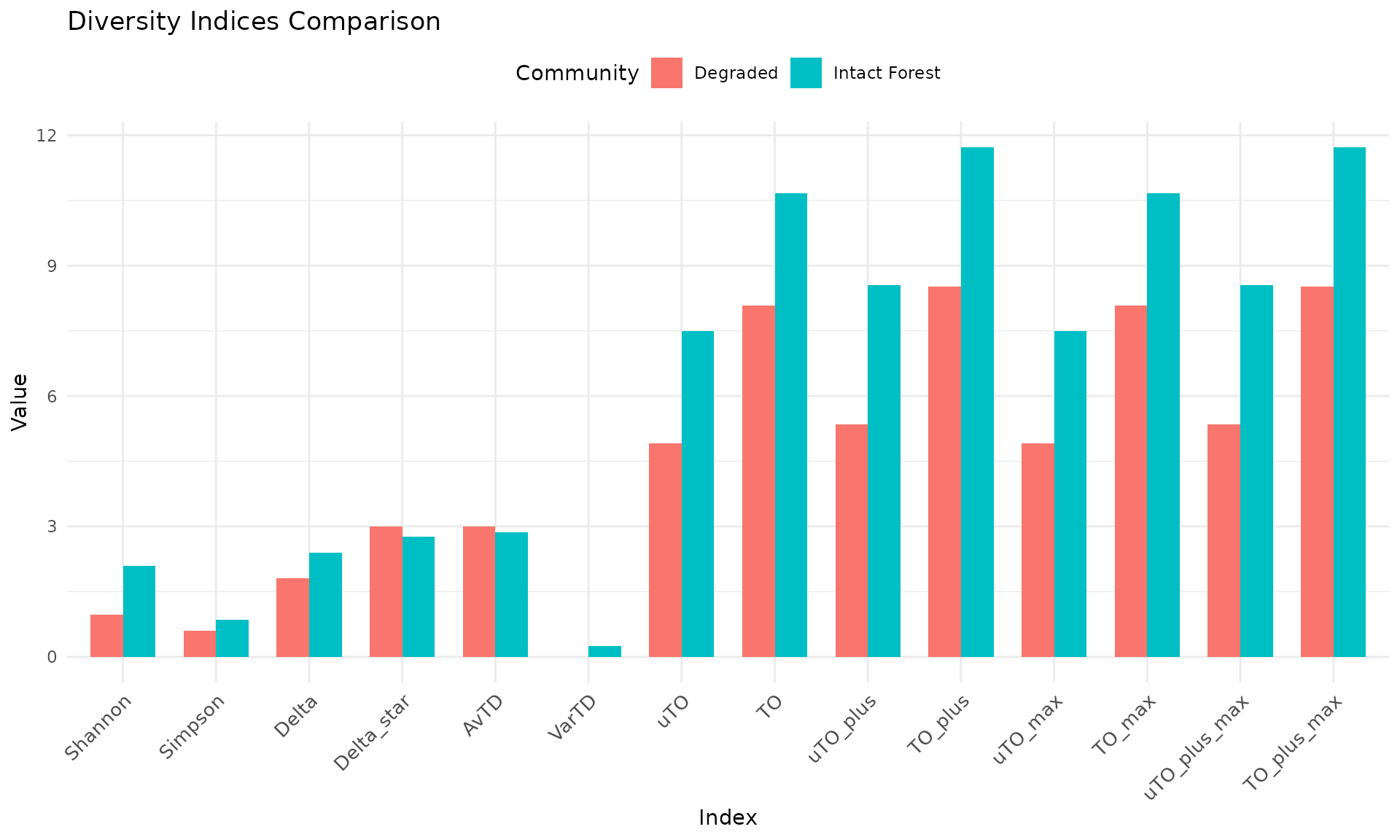

Bar chart comparing diversity indices between intact and degraded forest communities

Inspect the taxonomic tree

plot_taxonomic_tree(tax_tree, community = community,
                    color_by = "Family",
                    title = "Community Taxonomic Structure")

Dendrogram showing community taxonomic structure colored by family

Rarefaction curve

rare <- rarefaction_taxonomic(community, tax_tree,
                               index = "shannon",
                               steps = 10, n_boot = 50, seed = 42)
plot_rarefaction(rare)

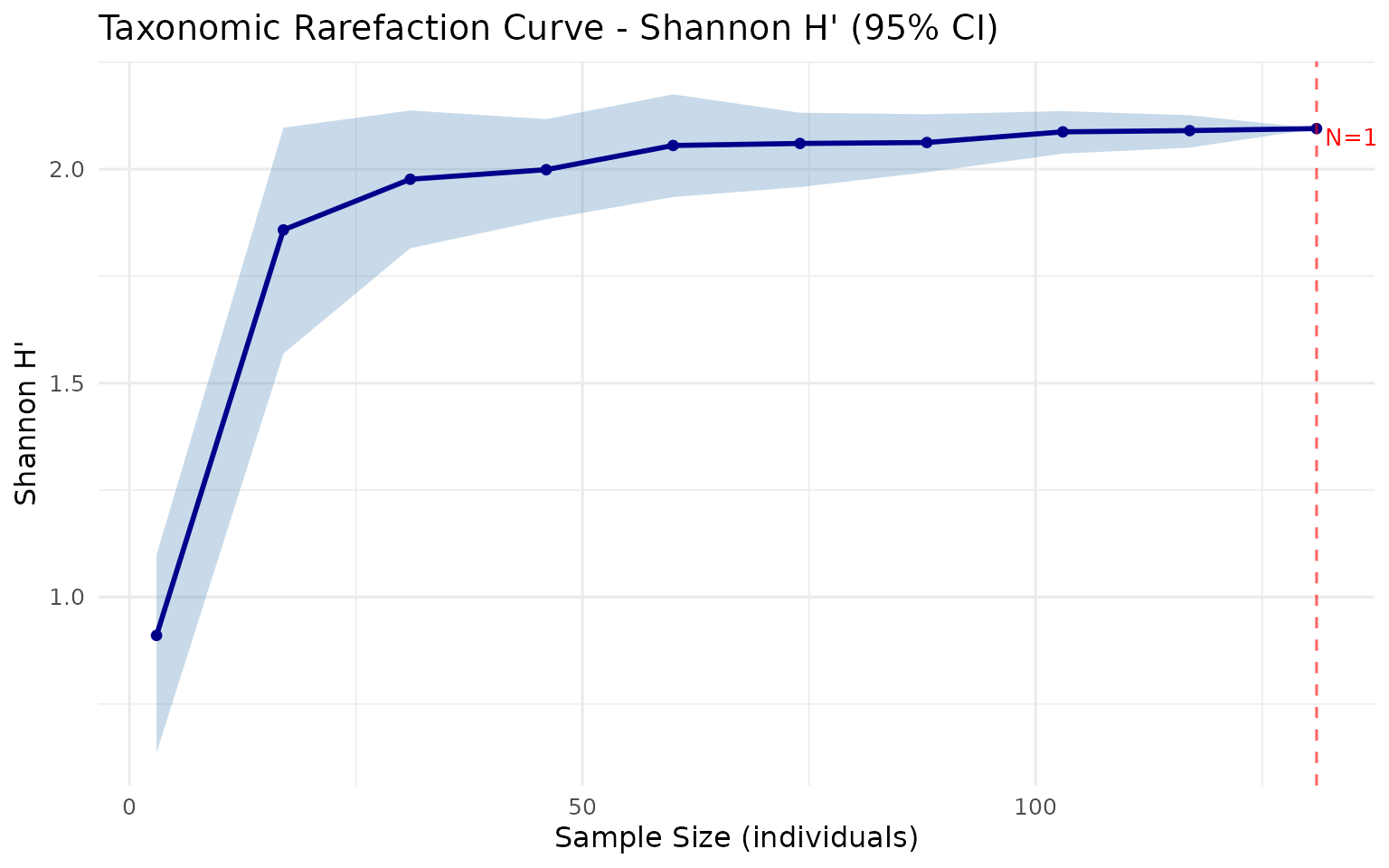

Shannon rarefaction curve with bootstrap confidence interval

Step 5: Export Results

Save to CSV

# Single community
df <- as.data.frame(t(compare_indices(community, tax_tree)$table))
write.csv(df, "results.csv", row.names = FALSE)

# Multi-site batch
write.csv(as.data.frame(batch_results$results),
          "batch_results.csv", row.names = FALSE)

Save to Excel

# Requires writexl package
# install.packages("writexl")
writexl::write_xlsx(as.data.frame(batch_results$results),
                    "batch_results.xlsx")

Quick Reference: Which Function to Use?

I want to…	Function
Compute Shannon/Simpson	`shannon()`, `simpson()`
Compute all 14 indices for one community	`compare_indices()`
Compute all indices for many sites	`batch_analysis()`
Run the full Ozkan pipeline (Run 1+2+3)	`ozkan_pto_full()`
Test if AvTD/VarTD is significant	`simulate_td()` + `plot_funnel()`
Check if sampling effort is sufficient	`rarefaction_taxonomic()` + `plot_rarefaction()`
Compare two or more communities visually	`compare_indices(plot=TRUE)` or `plot_radar()`
See species contributions	`plot_bubble()`
View the taxonomic hierarchy	`plot_taxonomic_tree()`
Create a taxonomic tree from species data	`build_tax_tree()`
